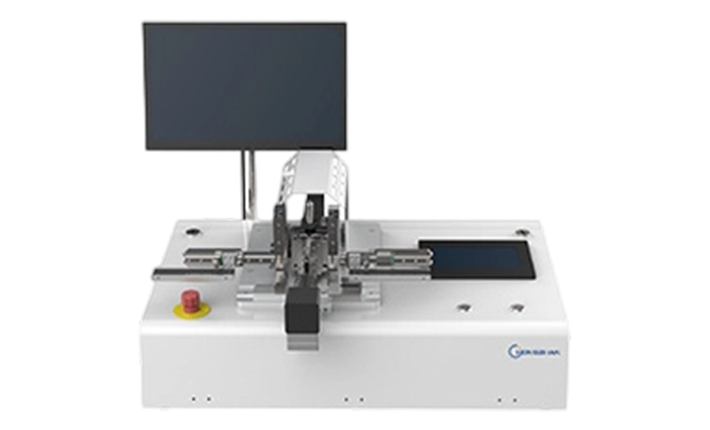

The CZRR Series Thermal Welding Equipment is a compact, user-friendly, and cost-effective polymer welding machine designed for thermoplastics such as Nylon, PVC, Polyurethane, PET, and other polymer materials. Leveraging the thermoplastic properties of polymers under heat, the device employs thermal radiation to achieve precise and efficient welding of polymer components.
The CZRR Series Thermal Welding Equipment is a compact, cost-efficient solution for welding thermoplastics like nylon, PVC, polyurethane, and PET using thermal radiation, enabling precise fusion of heat-sensitive polymer materials.
| No. | Parameter | Specification |
|---|---|---|
| 1 | Mold Size | Diameter 0.5–12mm (customizable) |
| 2 | Clamping Time | Adjustable: 0.1–99s; Resolution: 0.1s |
| 3 | Mold Temperature Range | Room Temp.–320°C; Resolution: 0.1°C; Stability: ±2°C |
| 4 | Power Supply | 220V/50Hz/10A |
| 5 | Air Source | Dry Compressed Air >0.4MPa |
