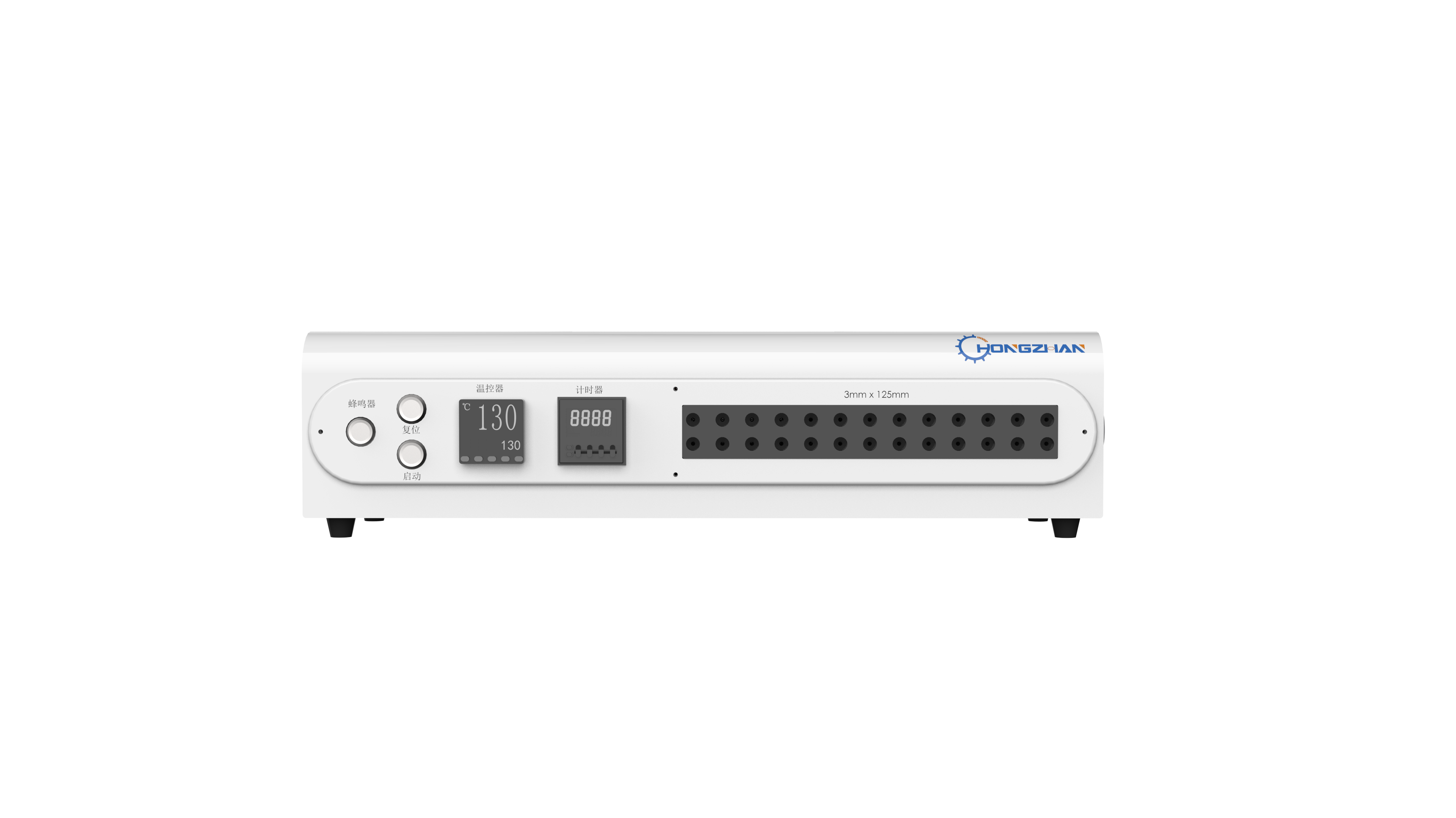

Balloon Thermal Molding Equipment is used for the shaping process after balloon folding.
The equipment features closed-loop control with real-time temperature feedback and adjustment, ensuring higher precision and stability in temperature regulation.
Equipment Specifications | |
Model | CZDX-300 |
Power Supply | AC210~230V; 50Hz |
Maximum Power | 500W |
Ambient Humidity | 20~75% (non-condensing) |
Ambient Temperature | 5~55℃ |
Dimensions (Main Unit) | LxWxH=650x200x150mm (Customizable) |
Options | Gas inflation device (optional) |
Process Parameters | |
Temperature Accuracy | ±1℃ |
Mold Heating Temperature Range | 0~150℃ |
Applicable Balloon Size (Ø×L) | 0~Ø3.5×0~300mm |
Note: | Other specifications available |
