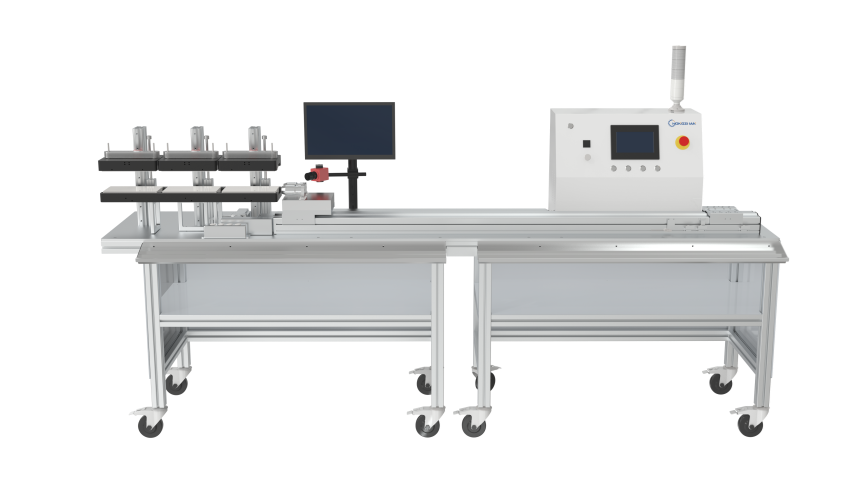

Mandrel Pulling Machine is a precision processing device based on the sliding friction principle (when external force exceeds the sliding friction between two compressed objects, separation can be achieved). Featuring advanced tension control and speed monitoring systems, it enables fully automated operation. The device software offers an intuitive interface for easy operation and maintenance.
1.Catheter Core Extraction
Precisely removes catheter cores while ensuring smooth inner surfaces
2.Multi-layer Catheter Separation
Delaminates composite catheters while preserving structural integrity
3.Special Coating Removal
Accurately strips temporary protective coatings without substrate damage
| Item | Specification Value |
Model Number | CZCX-1800 |
Power Supply | AC210~230V; 50Hz |
Maximum Power | 500W (Safe current: 220V 2.5A) |
Operating Environment | 5~40℃, 0~75% RH (Non-condensing) |
Drive Motor | Servo Motor |
Camera Magnification | 470K (pal) |
Display Resolution | 1366*768 |
Item | Specification Value |
Clamp Spacing (Anti-tangling) | 60 mm |
Force Sensor Range | 0~50kg |
Force Sensor Accuracy | 0.5‰ |
Minimum Force Resolution | 0.1g |
Maximum Product Length | 0~1800mm |
Separation Speed | 0~100mm/s |
Speed Accuracy | ±0.02mm/s |
Friction Separation Method | Three-stage Independent Press |
Mold Clamping Control | Three-stage Counterweight (Weights + Stainless Steel Plates) |
Air Pressure Requirement | 0.6Mpa≤P≤0.75Mpa |
Equipment Dimensions | 3500×700×1400 (mm) |
