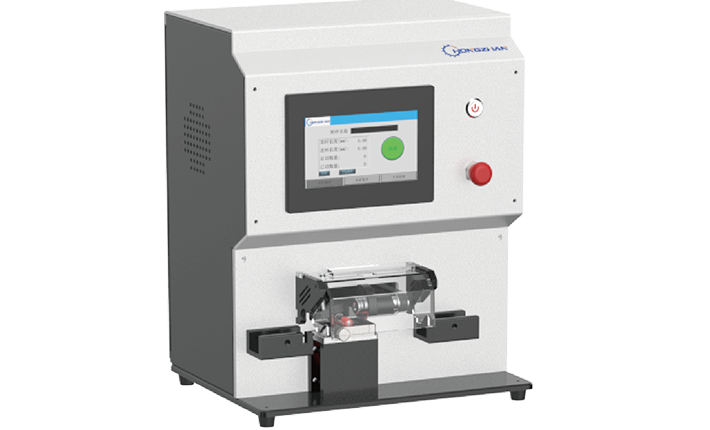

Braided Pipe Cutting Machine is specifically designed for plastic tube cutting, ideal for high-volume production. Featuring a specialized cutting angle and ultra-thin blades, it delivers smooth, burr-free cuts. The machine allows adjustable cutting force and mold replacement to achieve optimal results for different materials.
•Precision Cutting: Ultra-thin blades and optimized angles ensure clean, high-accuracy cuts.
•Flexible Adjustment: Customizable cutting force and interchangeable molds for diverse tube specifications.
•User-Friendly Interface: Touchscreen HMI with multi-parameter storage for quick production switching.
•Cost-Effective: Standard blade design balances productivity and operational economy.
Medical Tubing: Precision cutting of catheters and plastic tubes with smooth edges.
Item | Parameter | Item | Parameter |
Power Supply | AC210~230V; 50Hz | Medium | Clean compressed air |
Maximum Power | 240W/850W (adjustable on demand) | Output Pressure Range | Operator adjustable |
Operating Environment | 5~55℃; 0~75% RH | Temperature Range | 0-500℃ (varies by heater power) |
Dimensions | 210×400×130 mm | Temperature Accuracy | ±3℃ |
Installation Site | Standard production workshop |
