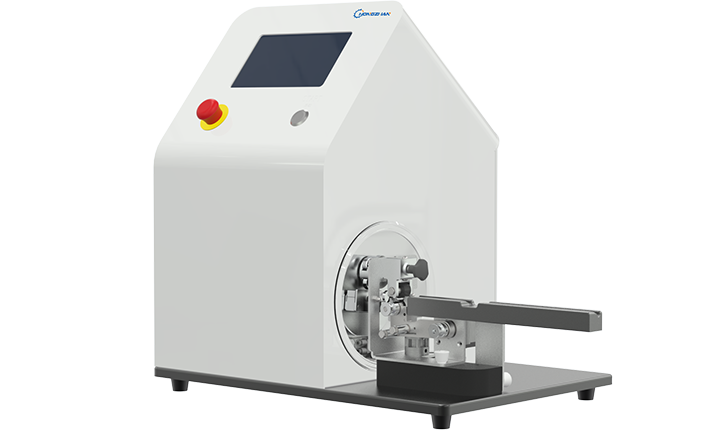

The rotary swaging machine is specifically designed for precision connection of marker bands to catheters. It utilizes a geometry-controlled (not force-controlled) swaging mechanism to achieve highly consistent swaged diameters.
•Precision Control: Geometry-controlled technology ensures stable swaged diameters and consistent results.
•Efficient Operation: High-end positioning motor enables mold changes in just 2 minutes, without additional adjustments or calibration.
•Smart Interface: Touchscreen HMI with recipe storage for quick parameter recall.
•Durable Performance: Precision-engineered swaging dies deliver long-lasting and accurate final diameters.
•Medical Catheter Assembly: Precision connection of marker bands to catheters, meeting medical-grade standards.
•High-Precision Metalworking: Suitable for other metal components requiring consistent swaged diameters.
Item | Specification Value |
Model Number | CZDD-200 V2.5 |
Power Supply | AC210~230V; 50Hz |
Maximum Power | 200 W |
Air Source | Clean compressed air |
Air Pressure | 0.2Mpa≤P≤0.7Mpa |
Operating Environment | 5~55℃, 0~75% RH (Non-condensing) |
Other Parameters
Item | Specification Value |
Adjustable Feeding Displacement | ≥120mm（±0.1mm） |
Adjustable Feeding Speed | 1-20mm/s（±0.1mm/s） |
Swaging Speed | Low (150rpm)/Medium (250rpm)/High (400rpm) |
Swaging Frequency | 10 Hz/16Hz/26Hz |
Compatible Materials | Platinum, Platinum-Iridium, Tantalum |
Suitable Product Diameter | 0.5mm~4mm |
Equipment Dimensions (Main Unit) | 600×320×470mm |
Installation Site | Standard production workshop |
