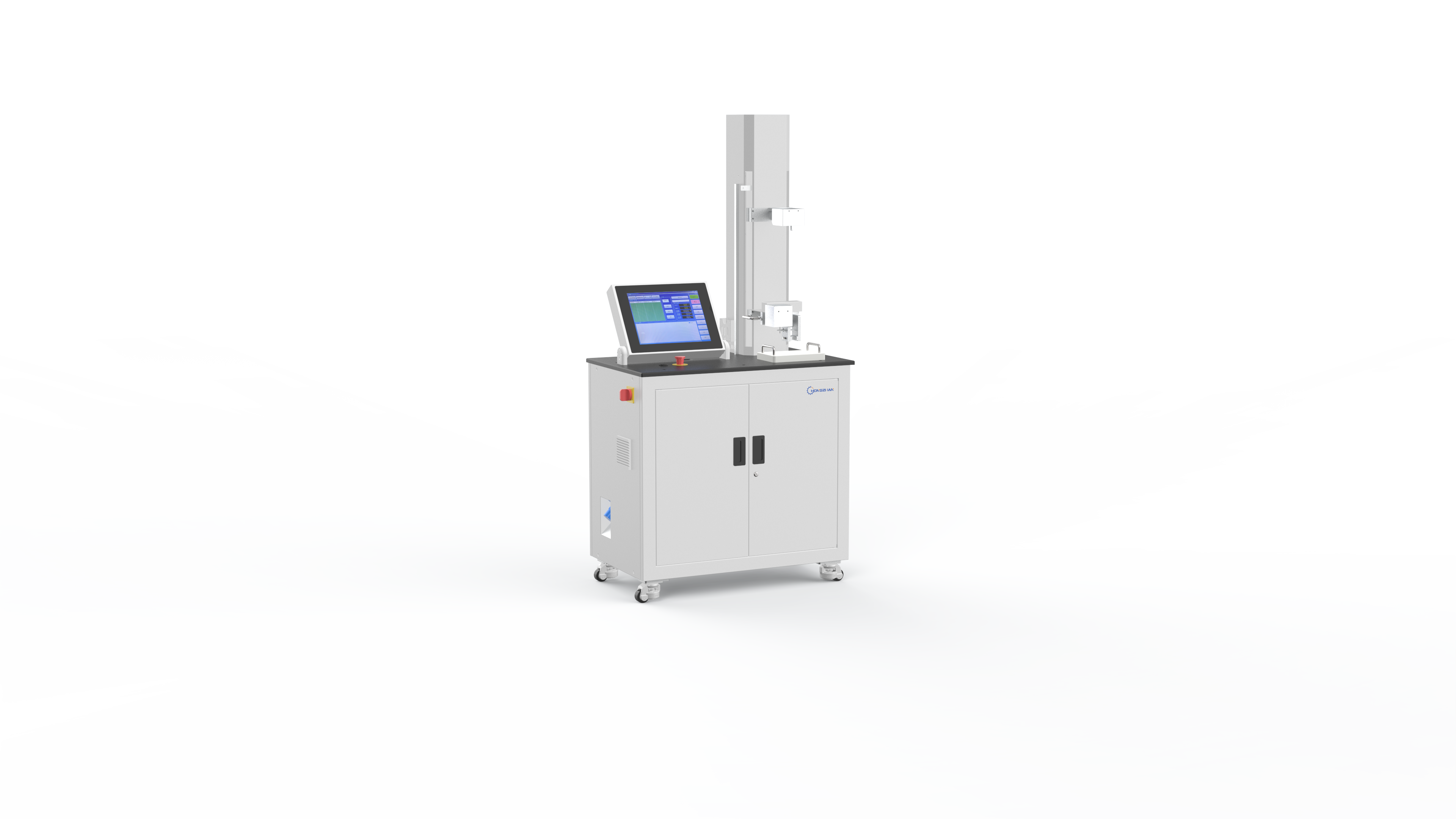

Friction testing machine is designed for measuring the surface friction characteristics of medical catheters. Equipped with advanced force sensing technology and precision motion control system, it can accurately determine both static and dynamic friction coefficients under different conditions.
Item | Specification |
Power Supply | AC220V; 50Hz |
Full Load Power | 900W |
Safety Protections | Over-current & leakage protection (Trip current ≤30mA) |
Measurable Product Length | 0~200mm |
Applicable Wire Diameter | 0~20mm |
Cycle Test Count | Programmable |
Vertical Load Cell Range | 0~500g |
Vertical Movement Speed | 0~100mm/s (Safe speed 30mm/s) |
Vertical Load Cell Accuracy | 0.02%FS |
Vertical Positioning Repeatability | 0.02mm |
Clamping Pressure Sensor Range | 0~2kg |
Clamping Positioning Repeatability | 0.02mm |
Clamping Pressure Sensor Accuracy | 0.02%FS |
Clamping Feed Speed | 0~10mm/s |
Water Temperature Control Accuracy | ±1℃ |
Water Temperature Range | Room temp~50℃ |
Water Tank Capacity | 2L |
Display Size | 15" (HMI) |
