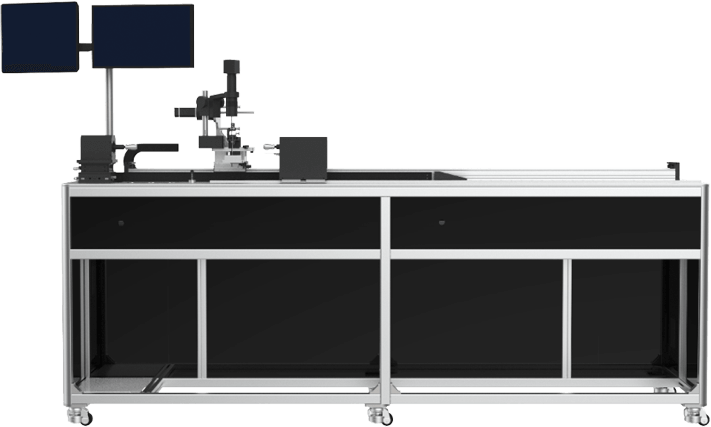

AI coiling machines help you achieve high-precision and high-efficiency coil production, offering significant advantages in optimizing production control, ensuring product quality stability, reducing labor costs, and enhancing economic efficiency.
This equipment handles various wires (stainless steel, nickel-titanium, platinum, gold) from 0.01mm diameter, with outer diameters as small as 0.15mm. It's used in medical fields for precision springs like guide wires and vascular coils.
| Supply voltage | AC220V;50Hz |
| Maximum power | 1800W |
| Coiling range | 300~1800mm |
| Suitable wire diameter | 0~0.29mm |
| Detective winding tension range | 0~294N |
| ire feeding speed accuracy of the main mold set | 0.05mm/s |
| Reset position accuracy of the wire feeding mold set | 士0.02mm |
| Spindle speed | 0-6000rpm |
| Working stroke of wire tension mold set | 40mm |
| Industrial camera Pixels | 2 million pixels |
| Magnification of lens | 7X-300X |
| Screen size | 15inch(HMI)+19inch(Micrograph) |
