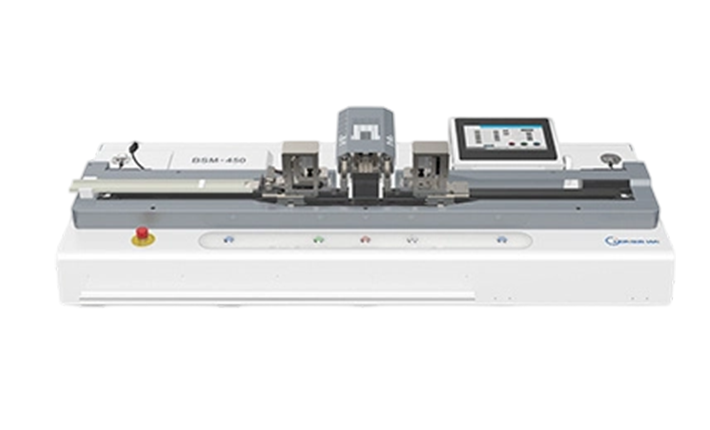

The CZBSM450 Balloon Tube Stretching Machine automates the production of medical-grade balloon precursor tubes via pull-stretch and thermal radiation methods, enabling precise dimensional control for pre-molding processes.
Key Component Brands
| Drawing Module | HIWIN KK Module (Taiwan) | High rigidity & precision |
Motion Control Core | Mitsubishi PLC FX3U (Japan) |
| Temperature Control Core | Omron PID Auto-tuning Controller |
| HMI (Human-Machine Interface) | Weintek 10-inch Full-color Touch Panel |
| Drive Motor | Delta AC Servo Motor |
| Actuators & Valves | Full SMC Pneumatic Cylinders & Solenoid Valves (Japan) |
| Simultaneous Processing | 3 products |
Technical Specifications
| Parameter | Value |
Operating Voltage/Power | AC 220V, 800W |
| Air Supply | Omron PID Auto-tuning Controller |
| Drawing Accuracy | ±0.01 mm (linear), ±0.01 mm/s (speed) |
| Drawing Speed Range | 0-200 mm/s |
| Mold Temperature Range | 0-350°C (±2°C) |
| Simultaneous Processing | 3 products |
| Module Stroke | 0-450 mm |
| Preset Process Parameters | 20 programmable recipes |
