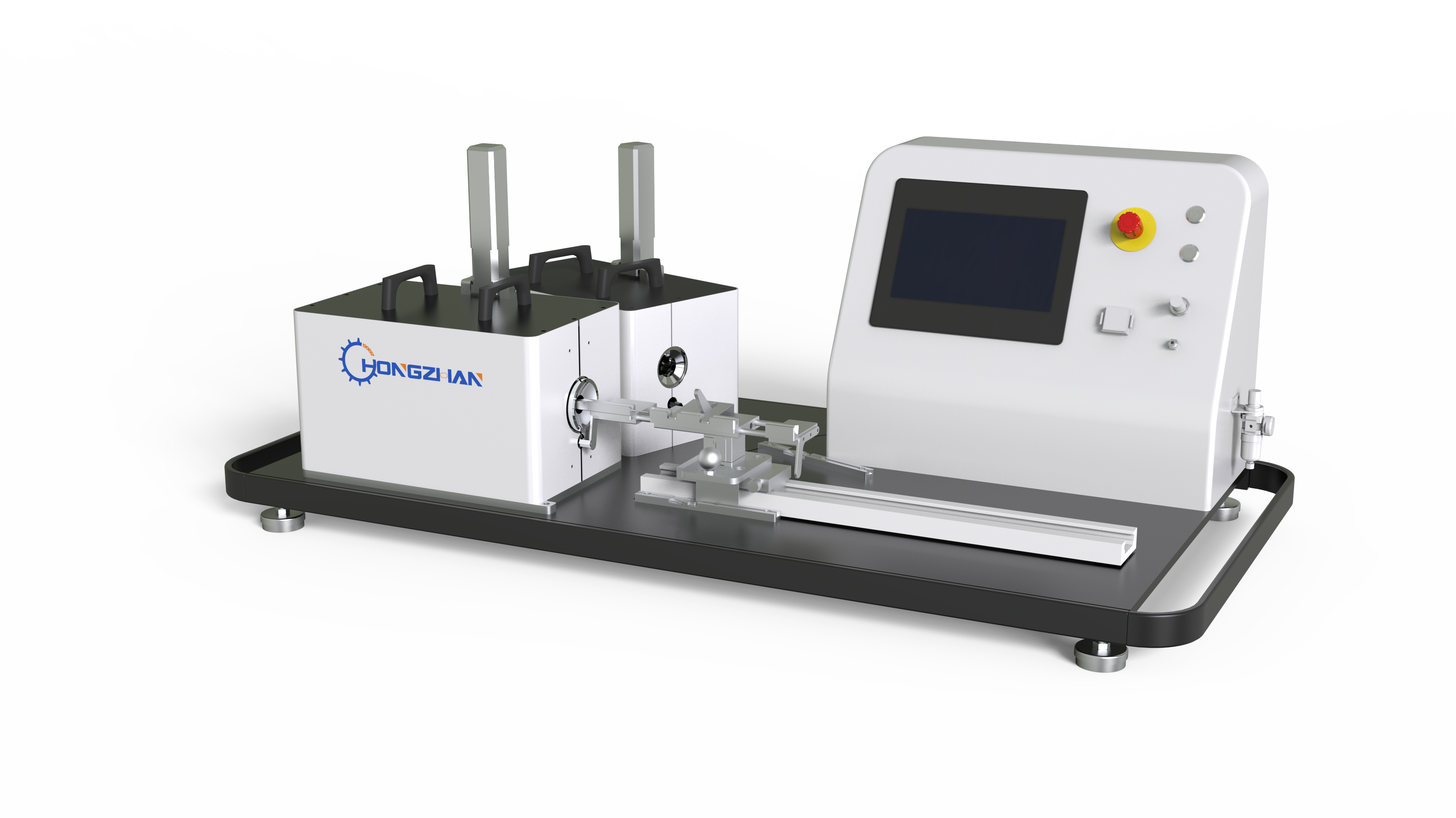

The machine performs balloon pleating and wrapping through compression and coiling processes, ultimately loading the balloon into a sheath for subsequent procedures and transportation.
This fully-integrated system combines:
Real-time parameter monitoring and automatic adjustments
Highly integrated design
User-friendly operation
Reduced labor and space requirements
Equipment Specifications | |
Model | CZBW-V3/V5 |
Power Supply | AC210~230V; 50Hz |
Full Load Power | 3000W (varies by balloon spec) |
Input Air Source | Clean compressed air |
Compressed Air Pressure | 0.35Mpa ≤ P ≤ 1Mpa |
Ambient Humidity | 20~75% (non-condensing) |
Ambient Temperature | 5~55℃ |
Control System Mode | Programmable automatic control |
Process Parameters | |
Balloon Shaping Pressure Range | -89Kpa~300Kpa |
Mold Heating Temperature Range | 0~80℃ |
Mold Axial Temperature Uniformity | ±2℃ |
Mold Surface Roughness (Ra) | 0.4 |
Applicable Balloon Length | 0~300mm |
Applicable Balloon Diameter | Φ1.5~Φ30mm (customizable) |
