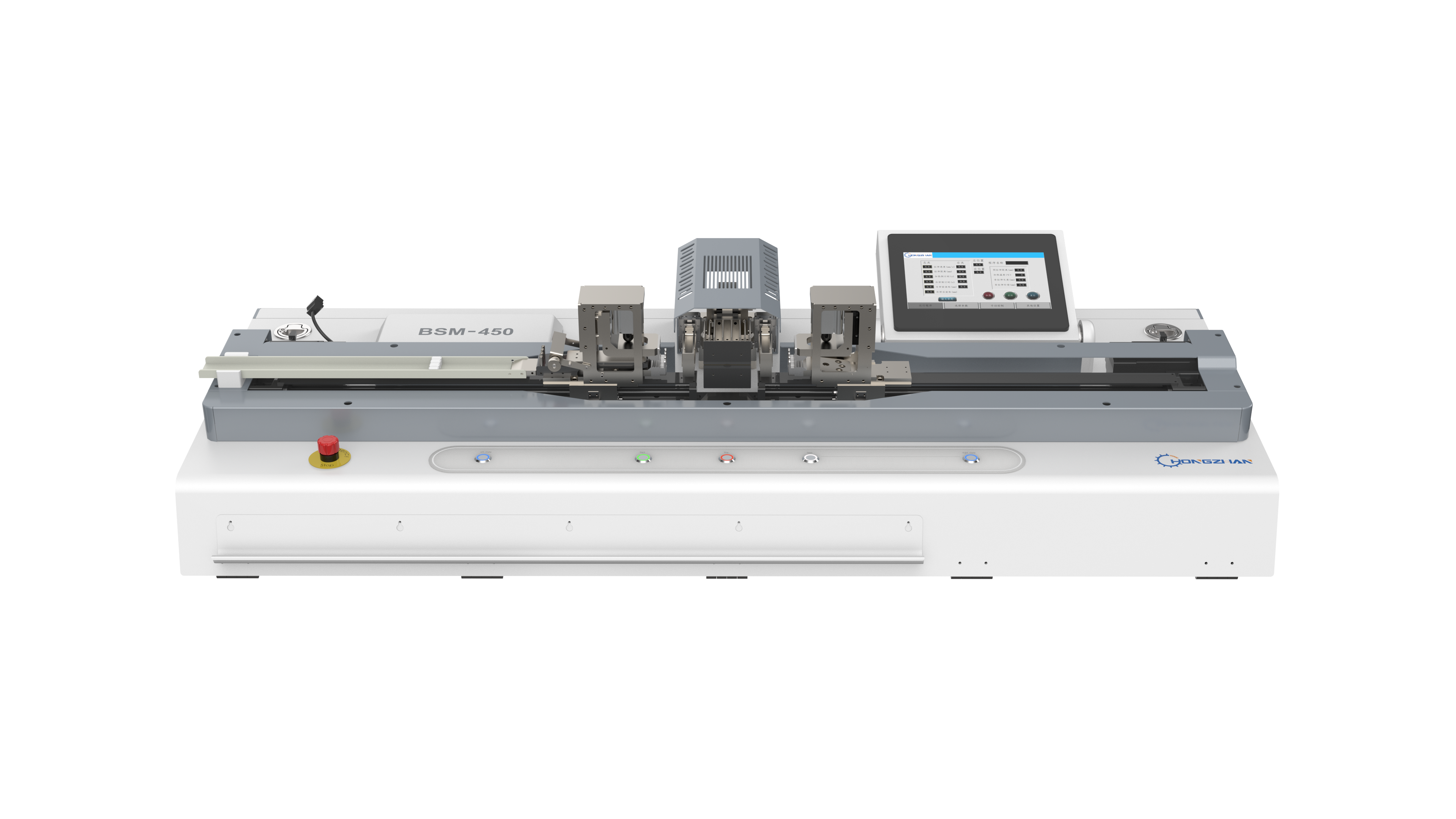

The CZBSM450 balloon tube stretcher is an automated integrated equipment for the production of original blister tubes for medical balloons. It is a necessary equipment for the pre-process of medical ballon forming. The equipment mainly uses drawing and heat radiation methods to obtain the required size balloon tube.
The CZBSM450 Balloon Stretching Machine is widely used in the pre-processing of interventional balloon tubing across multiple applications:
Cardiovascular Intervention
Neckdown and precision stretching of PTCA (Percutaneous Transluminal Coronary Angioplasty) balloon tubing.
Peripheral Vascular Intervention
Processing of parisons for large-diameter and long-length PTA (Percutaneous Transluminal Angioplasty) balloons.
Neurointervention
High-precision stretching of ultra-fine microcatheter balloon tubing.
Non-vascular Applications
Tubing preparation for dilation balloons used in the esophagus, biliary tract, urethra, and other applications.
Material Compatibility
Compatible with a wide range of medical-grade polymers, including Nylon 12, Pebax, PET, and TPU.
Key Component Brands
| Drawing Module | HIWIN KK Module (Taiwan) | High rigidity & precision |
Motion Control Core | Mitsubishi PLC FX3U (Japan) |
| Temperature Control Core | Omron PID Auto-tuning Controller |
| HMI (Human-Machine Interface) | Weintek 10-inch Full-color Touch Panel |
| Drive Motor | Delta AC Servo Motor |
| Actuators & Valves | Full SMC Pneumatic Cylinders & Solenoid Valves (Japan) |
| Simultaneous Processing | 3 products |
Technical Specifications
| Parameter | Value |
Operating Voltage/Power | AC 220V, 800W |
| Air Supply | Omron PID Auto-tuning Controller |
| Drawing Accuracy | ±0.01 mm (linear), ±0.01 mm/s (speed) |
| Drawing Speed Range | 0-200 mm/s |
| Mold Temperature Range | 0-350°C (±2°C) |
| Simultaneous Processing | 3 products |
| Module Stroke | 0-450 mm |
| Preset Process Parameters | 20 programmable recipes |
