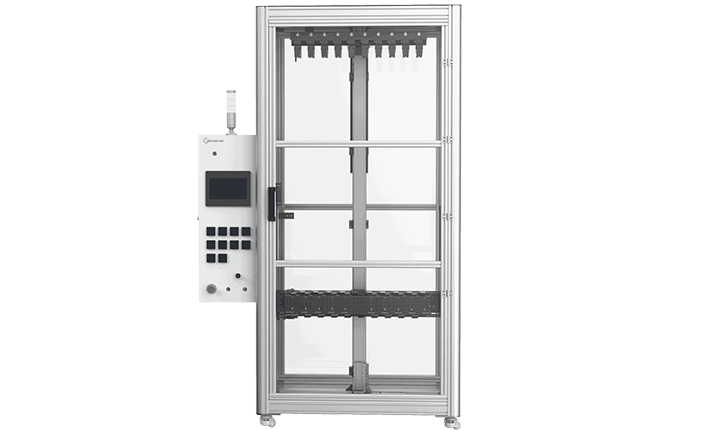

The principle of CZRS series Laminator (Heat Radiation) is to use the different melting and boiling points of polymer materials, as well as the material's sensitivity to temperature and thermoplasticity, to splice two or more materials together.
The principle of CZRS series Laminator (Heat Radiation) is to use the different melting and boiling points of polymer materials, as well as the material's sensitivity to temperature and thermoplasticity, to splice two or more materials together.
| Supply voltage | AC210-230V;50Hz |
| Maximum power | 3800W(Based on 6 saions) |
| Input air source | Clean compressed air |
| Compressed air | 0.5Mpa≤P≤0.7Mpa |
| Ambient temperature and humidity | 5-55℃、0-75%(No condensation) |
| Equipment size (host) | Length * Width "Height =1200x800x2400(mm) |
| Adjustable displacement accuracy | 0.1mm |
| Adjustable speed accuracy | 0.1mm/s |
| Heating temperature | 500°±3(can be customized according to the actual heating situation) |
| Machinable pipe outer diameter range | 1mm~10mm(heating core can be customized according to actual demand, can be replaced) |
| Machinable pipe outer diameter range | 1mm-10mm(can be customized according to actual demand) |
| Stroke | 1800mm(customizable) |
| Installation site | Standard production shop |
