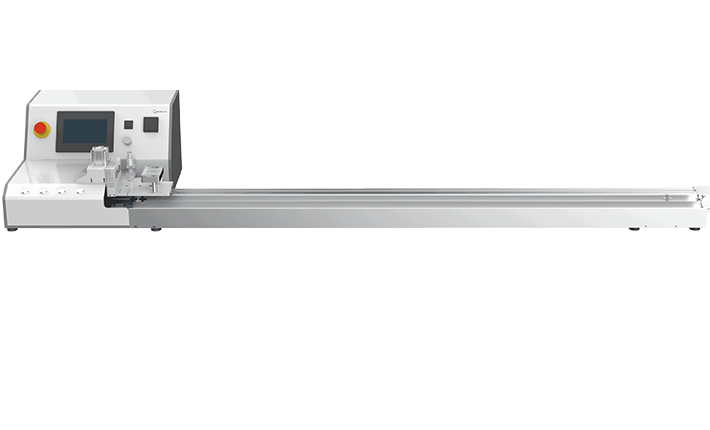

The Extrysion Die Stretching Machine is a PLC-controlled compact device designed for precise diameter adjustment. Equipped with a closed-loop temperature control system and servo drive, it guarantees high repeatability and stability.
Medical Tube Necking
Heat-Shrink Tube Sizing
Welding Sleeve Protection
Balloon Sheath Sizing
Electrical Parameters | Value / Range |
Equipment Model | CZIBW-1800 |
Power Supply Voltage | AC210~230V; 50Hz |
Maximum Power | 1000 W |
Ambient Temperature & Humidity | 5~55°C, 0~75% (Non-frosting) |
Motion Motor | Servo Motor |
Equipment Dimensions (Main Unit) | L×W×H = 2750×760×500mm |
Installation Site | Low-voltage Control (Standard Production Workshop) |
Other Parameters | Value / Range |
Adjustable Displacement Accuracy | 0.1mm |
Adjustable Speed Accuracy | 0.1mm/s |
Product Drawing Length | 400~1800mm (Customizable) |
Chuck Spacing | 400~1800mm (Customizable) |
Force Sensor Range | 0~4000N (Customizable) |
Force Sensor Accuracy | ±0.5% |
Minimum Force Resolution | 0.1N |
Supported Product Outer Diameter | 0.5mm~7mm |
