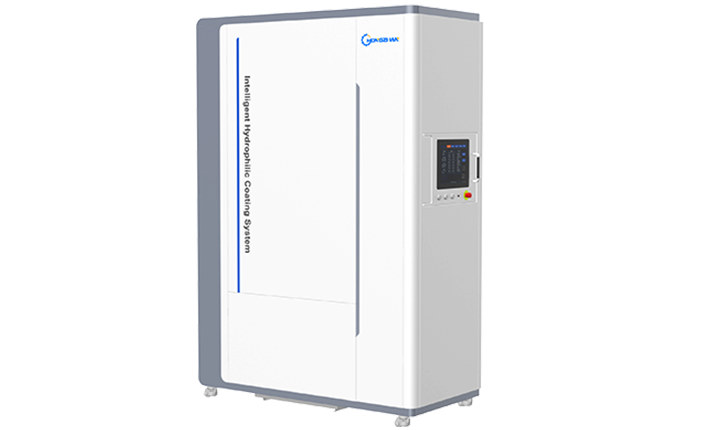

The CZTC Series Hydrophilic Coating Equipment is designed for applying ultra-lubricious hydrophilic coatings to the surfaces of medical catheters, guidewires, and metal tubes.
The new intelligent hydrophilic coating system adopts a stepless light intensity adjustment systemand the curing efect is more uniform. The product hanger can be replaced quickly. The equipment is equipped with automatic light intensity measurement system, visualization function, Keens safety grating, additional auxiliary clamping system, and temperature and humidity control system.
LED hydrophilic coating equipment, using dip coating and curing machine design, PLC precision controlof product dip coating and lifting time,speed. The equipment adopts the dip-coating method to coat the coating solution on the outer surface of the product, and then iradiates with specific wavelength of UV light to cure the coating of the product. The product is coated uniformly. The solution utilization rate is high and more economical
Electrical Parameters Table
| Parameter | V2.0 | V6.0 |
|---|---|---|
| Power Supply Voltage | 380V | 380V |
| Max Power | 5750W (10 lights) | 6800W (8 lights) |
| Operating Temperature | 5–40°C | 5–40°C |
Air Source Pressure | 0.5–0.7MPa | 0.5–0.7MPa |
| Drive System | Servo Motor | Servo Motor |
| Control Core | Mitsubishi PLC | Mitsubishi PLC |
| Main Cooling Fan | Ball Bearing Axial Fan | Ball Bearing Axial Fan |
| Fan Airflow | 64m³/min | 64m³/min |
| Dimensions (H×W×L) | 1730×820×2500mm | 1800×825×2200mm |
| Ventilation Duct | Ø249mm (标配Ø250mm hose) | Ø249mm (标配Ø250mm hose) |
| UV Intensity Adjustment | - | 40–100% Stepless Adjustment |
Other Parameters Table
| Parameter | V2.0 | V6.0 |
|---|---|---|
| UVA Spectrum Range | 270–470nm (Peak 350–395nm) | 270–470nm (Peak 350–395nm) |
| Irradiation Energy | ≥40mW/cm² | ≥40mW/cm² |
| Lamp Array Configuration | 10 lamps (5 rows × 2 columns) | 8 lamps (4 columns × 2 rows) |
| Coating Coverage Length | 0–960mm (Customized) | 0–960mm (Customized) |
| Positioning Accuracy | ±0.5mm | ±0.5mm |
| Immersion Speed | 0.1–100mm/s | 0.1–100mm/s |
| Fixture Rotation Speed | 1–20rpm | 1–20rpm |
| Process Parameter Storage | 98 sets | 98 sets |
| Solution Tubing Material | Medical-grade PE | Medical-grade PE |
| Filter | Medium Efficiency (Replaceable) | Medium Efficiency (Replaceable) |
