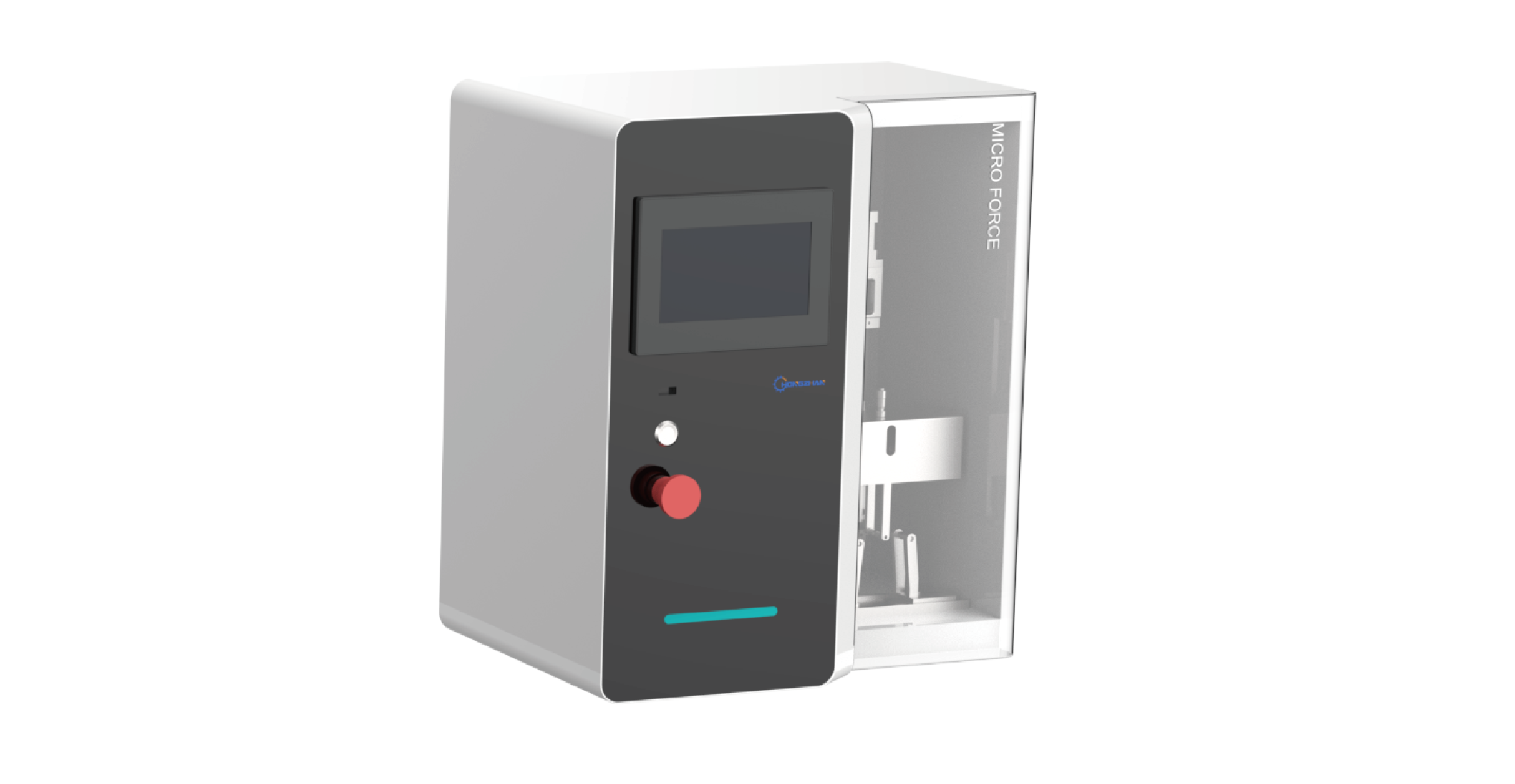

Designed to measure catheter bending strength and radius. Applies pressure to bend the catheter while sensors record force/deformation data, generating a bending force-displacement curve.
Parameter | Specification |
Supply Voltage | AC220V; 50Hz |
Maximum Power | 1000W |
Applicable Catheter Ø | 2-8mm (Customizable fixtures) |
Applicable Catheter L | 50-260mm (Customizable fixtures) |
Force Range | 0-20N |
Force Accuracy | ±0.05% FS |
Displacement Repeatability | ±0.02mm |
Operating Temperature | 5-55℃ |
Operating Humidity | 0~75% RH (Non-condensing) |
Dimensions (L×W×H) | 600×580×820mm |
