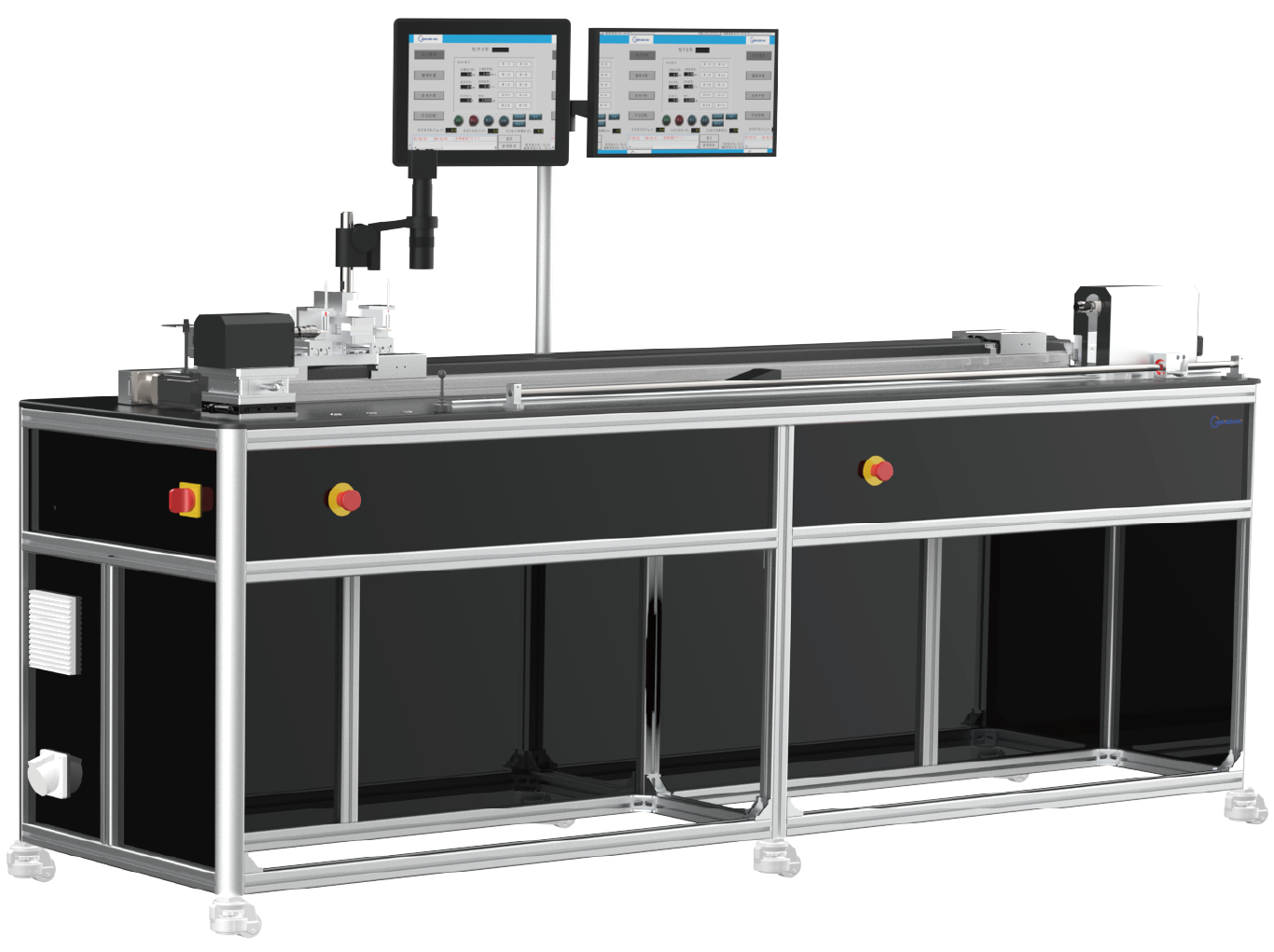

Winding help you achieve high-precision and high-efficiency coil production, offering significant advantages in optimizing production control, ensuring product quality stability, reducing labor costs, and enhancing economic efficiency.
This equipment handles various wires (stainless steel, nickel-titanium, platinum, gold) from 0.01mm diameter, with outer diameters as small as 0.15mm. It's used in medical fields for precision springs like guide wires and vascular coils.
Specification Item | Value / Range |
Power Supply Voltage | AC220V; 50Hz |
Full Load Power | 1600W |
Processable Product Range | 1800mm |
Applicable Wire Diameter | 0~0.5mm |
Core Wire Tension Sensor Range | 0~200N |
Main Module Feed Speed Accuracy | 0.01mm/s |
Feed Module Repositioning Accuracy | ±0.02mm |
Spindle Speed | 0~3000 RPM |
Industrial Camera Resolution | 2 Megapixels |
Lens Magnification | 7X—300X |
Display Size | 15" (HMI) + 19" (Microscopic View) |
Distance from Core Axis Start to Chuck | 60mm |
